CameraLink Assy:Non PoCL Mini Camera Link Right Angle SDR-MDR-D
 Right Angled SDR to MDR SDR-MDR Cameralink Connects Standard MDR Connector |
|
List Price: $260.00
Your Price: $245.00
You Save: $15.00
Product Made by: SFCC Vision Systems
Manufacturer Part No: SFCC-X-PO-SDU-MD
Nickname: SDR-MDR down -Non PoCL
Product Options
| |
|

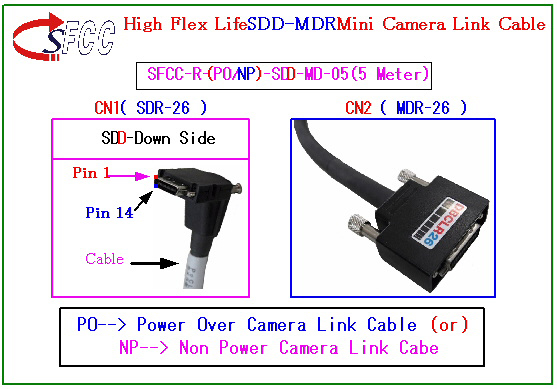

Shrunk D Ribbon (SDR) at camera side to Mini D Ribbon (MDR) at PC side
Right angled down direction SDR to MDR camera link assembly with Non PoCL (Camera Link) configuration!
Also Customer can order for the PoCL ( Power Over Camera Link ) cable configuration.
Customer can choose length.
Built with robot cable! Made in Japan
|
Color
|
Black
|
|
Outer Diameter
|
8.8 ± 0.1 mm
|
|
Temperature Rating
|
80°C (per UL20276)
|
|
Conductor Resistance at 20C
|
less than 240 W/km
|
|
Insulation Resistance
|
over 100 MW-km
|
|
Withstanding:Voltage
|
350 VAC for 1 minute
|
|
Voltage Rating
|
30 VAC
|
|
Characteristic Impedance
|
100 ± 10 W
|
|
Propagation Speed
|
4.7 ns/m ± 10%
|
|
Skew (within pair)
|
50 ps/m maximum
|
|
RoHS Compliant
|
Yes
|
Call us for more information, including typical Eye Patterns at 300Mbps!
Select your cable direction
U for Up
D for Down. .
example SFCC-R-NP-SDD-MD-05
explanations
S for S cable
FCC for flexible cam cable
R for Robotic applications
NP forNon Power Camera Link Type
SD for SDR 26 pin connector
U for Up direction cable right angle connector
MD for MDR 26 pin connector
05 for cable length 5 meter (16.5 ft)
|
Your Price: Starting at $195.00
Camera Link Cable Assembly with SDR to MDR straight Connector Power Connection Type, Standard Frequency, RoHS
Built using robot cables with high flex life specs! Made in Japan
| |
