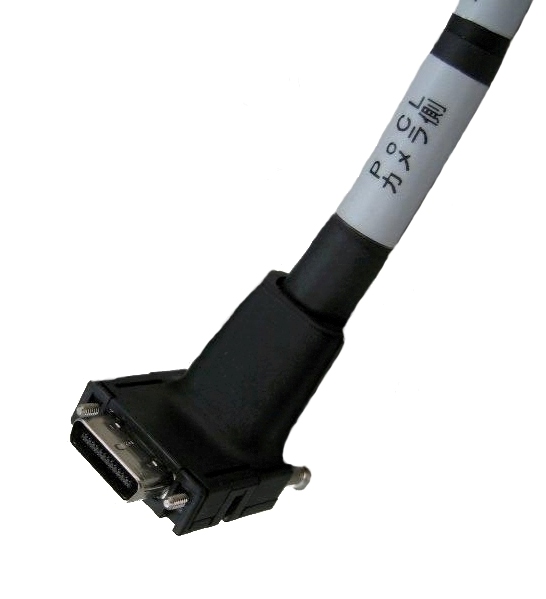

CameraLink Assy: Mini Camera Link Right Angle SDR-MDR-U
|
Your Price: Starting at $165.00
Lead time 2-3 weeks
Product Made by: SFCC Vision Systems
Manufacturer Part No: SFCC-X-PO-SDU-MD
Nickname: SDR-MDR up-PoCL
Product Options
| |
|
Shrunk D Ribbon (SDR) at camera side to Mini D Ribbon (MDR) at PC side
Right angled SDR to MDR camera link assembly with PoCL (Power Over Camera Link) configuration!
Also Customer can order for the NP (Non Power Camera Link ) cable configuration.
Customer can choose length. ( ½ to 15 meter )
Built with robot cable! Made in Japan
|
Color
|
Black
|
|
Outer Diameter
|
8.8 ± 0.1 mm
|
|
Temperature Rating
|
80°C (per UL20276)
|
|
Conductor Resistance at 20C
|
less than 240 W/km
|
|
Insulation Resistance
|
over 100 MW-km
|
|
Withstanding:Voltage
|
350 VAC for 1 minute
|
|
Voltage Rating
|
30 VAC
|
|
Characteristic Impedance
|
100 ± 10 W
|
|
Propagation Speed
|
4.7 ns/m ± 10%
|
|
Skew (within pair)
|
50 ps/m maximum
|
|
RoHS Compliant
|
Yes
|
Call us for more information, including typical Eye Patterns at 300Mbps!
Select your cable direction
U for Up
D for Down. .
example SFCC-R-PO-SDU-MD-05
explanations
S for S cable
FCC for flexible cam cable
R for Robotic applications
PO for Power Over Camera Link Type
SD for SDR 26 pin connector
U for Up direction cable right angle connector
MD for MDR 26 pin connector
05 for cable length 5 meter (16.5 ft)
|
Your Price: Starting at $165.00
Camera Link Cable Assembly with SDR-Down direction to MDR straight Connectors
PoCL -- Power On Camera Link Type, Standard Frequency, RoHS
Ask about custom length availability.Built using robot cable with high flex life specs! Made in Japan
|
Your Price: Starting at $145.00
Camera Link Cable Assembly with SDR to MDR straight Connector Power Connection Type, Standard Frequency, RoHS
Built using robot cables with high flex life specs! Made in Japan
|
