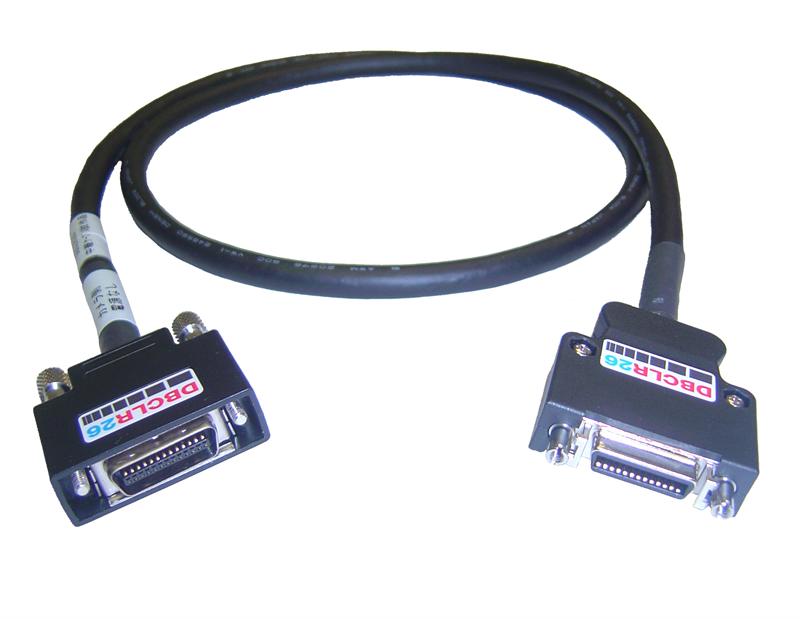

Extension Camera Link Cable: MDR Male to MDR Female
|
Your Price: Starting at $100.00
Product Made by: SFCC Vision Systems
Manufacturer Part No: SFCC-R-PO-MDX-MD
Nickname: MDR-NP-CamLink Repeater Extension
Product Options
| |
|
Robotic cameralink cable assembly with MDR Male and MDR Female Connections .
Camera Link Extension/Repeater Cable Assembly.
Customer can choose length. ( ½ to 5 meter )
Custom lengths also available.
* How to use SFCC Extensinon Cable?

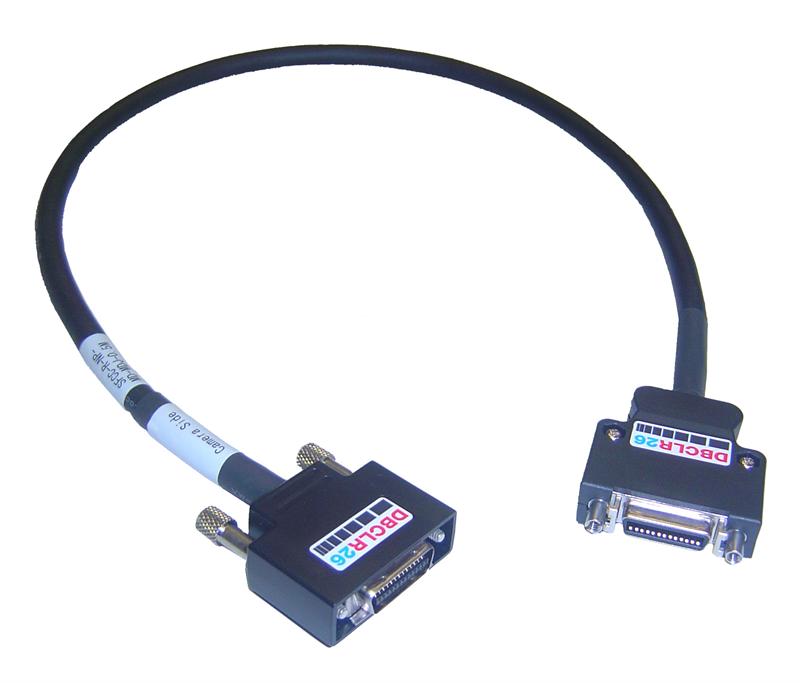

* CCD Camera --> SFCC Extension Cable ( MD-MDJ )--> Camera Link MDR-MDR Cable.
All camera link cables from US meet high flex life or robotics specifications. Made in Japan
|
Color
|
Black
|
|
Outer Diameter
|
8.8 ± 0.1 mm
|
|
Temperature Rating
|
80°C (per UL20276)
|
|
Conductor Resistance at 20C
|
less than 240 W/km
|
|
Insulation Resistance
|
over 100 MW-km
|
|
Withstanding:Voltage
|
350 VAC for 1 minute
|
|
Voltage Rating
|
30 VAC
|
|
Characteristic Impedance
|
100 ± 10 W
|
|
Propagation Speed
|
4.7 ns/m ± 10%
|
|
Skew (within pair)
|
50 ps/m maximum
|
|
RoHSCompliant
|
Yes
|
Call us for more information, including typical Eye Patterns at 300Mbps!
|
Your Price: Starting at $110.00
Standard MDR -to- MDR camera link Cable Assemblies
Power on Camera Link, Normal frequency up to 85MHz at 10 meter length
High Flex Life or Robotics Specifications! Made in Japan
|
Your Price: Starting at $100.00
Standard MDR -to- MDR camera link Cable Assemblies
Non Power Connection Type, Normal frequency up to 85MHz at 10 meter length. Ask about custom length availability.
High Flex Life or Robotics Specifications. Made in Japan
|
